Hardware
The CCD is extensible through a variety of options, such as:
- Protective hood
- CAM / Isolation software
- cooling device
- monitor + camera
- compressor
- etc.
Software
Bungard standard software routePro3000 can be expanded with additional software modules, such as:
- LaserPro 3000
- DispPro 3000
- Calibrate 3000
- Inspect 3000
- Document 3000
- Plus 3000
The CCD is extensible through a variety of options, such as:
- Protective hood
- CAM / Isolation software
- cooling device
- monitor + camera
- compressor
- etc.
Bungard standard software routePro3000 can be expanded with additional software modules, such as:
- LaserPro 3000
- DispPro 3000
- Calibrate 3000
- Inspect 3000
- Document 3000
- Plus 3000
Starter-Kit for Bungard CCD
To work directly with your Bungard CCD, some accessories are required. For our new customers we arranged a starter kit according to our experience.
amount of delivery:
- 40 pcb routers (10xG30°, 10xG60°, 5x0.8 mm SCFT, 5x1.0 mm SCFT, 2x1.2 mm SCFT, 2x 1.5 mm SCFT, 2x2.0 mm SCFT, 2x2.5 mm SCFT, 2x3.0 mm SCFT)
- 40 carbid drills (5x0.6 mm, 5x0.7mm, 5x0.8 mm, 5x0.9 mm, 4x1.0 mm, 3x1.1 mm, 3x1.2 mm, 2x1.3 mm, 2x1.5 mm, 2x2.0mm, 2x2.5mm, 2x3.0 mm)
- 100 reference pins
- 3 pcb cleaner
- 1 special adhesive tape
- 10 boards FR4 200x300x1,5 mm 35/0 cooper
- 10 boards FR4 200x300x1,5 mm 35/35 cooper
- 5 drill backing boards 245x330x6 mm
High quality, precisely grinded carbide drill and routing bits. All models have a reinforced shank of 3,175 mm and are equipped with a distance ring. The distance from the tip to the upper side of the ring is 21 mm. The ring has a diameter of 7.5 mm and is labeled or color-coded accosding to the diameter. The tools are packaged in resealable plastic boxes.
Dust extraction for Bungard CCD
from now on a new enhanced dust extraction for Bungard CCD machines is available (part of delivery).
Advantages:
- improved suction results
- less noise
Dust / noise cover
On request the CCD is delivered with a Dust / noise cover.
Noise / dust protection-rack
For dust and noise protection we offer soundproofing hoods and racks.
Work space illumination for CCD
On request, the Bungard CCD can be equipped with a suitable LED work space illumination.
The illumination is mounted under the spindle holder and follows the machining in the X, Y and Z direction.
Pen plot adapter
One integral part of the CCD is to keep it multifunctional.
Exchanging the high frequency spindle with a pen plot adapter changes the CCD into an A3 Pen plotter.
Digital Microscope for Bungard CCD
incl. adaptor for z-axis
Functional digital microscope camera. Simply connect DigiMicro 1.3 via USB port to your computer - power is provided by the USB connection. Equipped with 4 white LED DigiMicro 1.3 magnifies up to 200 times and it offers a 1.3 megapixel camera, that takes pin sharp photos or records videos of the intended object.
Hand-operated machine, especially for mechanical through-hole-plating purposes. Professional through-hole-platings by individual tools for each rivet diameter. Optimal contacts, even without soldering. Favorit offers high quality results at a low cost level.
PVC-Cover for CCD/2 and CCD/2/ATC
CCD2 cover (noise+dust protection f.user) with transparent walls and door safety switch, model PVC, Net dimension cover: (BxTxH) 800x800x510 (open 910) mm³ ca. 15 kg
Rack for CCD/2 and CCD/2/ATC

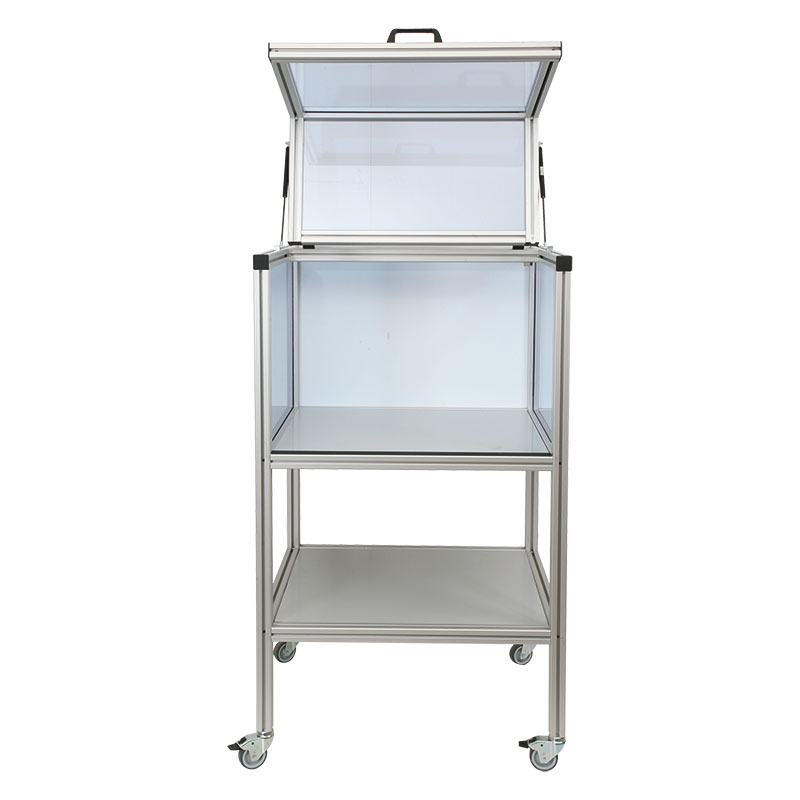

CCD/2 cover rack (noise+dust protection f.user), floorstanding, PVC cabinet with transparent walls, sliding door, on aluminum profil system with 4 wheels, laptop shelf optional (not inclluded) size/weight +- 75x80x140cm³(196cm opened), +- 50 kg
High quality, precisely grinded carbide drill and routing bits. All models have a reinforced shank of 3,175 mm and are equipped with a distance ring. The distance from the tip to the upper side of the ring is 21 mm. The ring has a diameter of 7.5 mm and is labeled or color-coded accosding to the diameter. The tools are packaged in resealable plastic boxes.
from now on a new enhanced dust extraction for Bungard CCD Maschinen is available.
Advantages:
- less noise
- no height loss in z-axis
For dust and noise protection we offer soundproofing hoods and racks.
On request the CCD is delivered with a vacuum table.
On request, the Bungard CCD can be equipped with a suitable LED work space illumination.
The illumination is mounted under the spindle holder and follows the machining in the X, Y and Z direction.
One integral part of the CCD is to keep it multifunctional.
Exchanging the high frequency spindle with a pen plot adapter changes the CCD into an A3 Pen plotter.
incl. adaptor for z-axis
Functional digital microscope camera. Simply connect DigiMicro 1.3 via USB port to your computer - power is provided by the USB connection. Equipped with 4 white LED DigiMicro 1.3 magnifies up to 200 times and it offers a 1.3 megapixel camera, that takes pin sharp photos or records videos of the intended object.
Hand-operated machine, especially for mechanical through-hole-plating purposes. Professional through-hole-platings by individual tools for each rivet diameter. Optimal contacts, even without soldering. Favorit offers high quality results at a low cost level.
More
Depth limiter
Adapter with router motor
for milling and engraving e.g. plastics
Compressor
oil free- 8 bar
super silent- approx..54 db/A
Pressure foot
for drilling and routing.
Manual dispenser
with contact switch for dispensing module of RoutePro3000.
Reference pins / rivets
3.0x5,4 mm (1 VE=100 pc)
USB camera
The USB camera will allow optical inspection of your board.
Coolant supply
With few steps you can equip the CCD with a coolant supply.
PVC Cover or Complete Rack
With few steps you can equip the CCD with a coolant supply.
CNC machine
CCD Premium
An international trendsetter on the world market for printed circuit board production is the...
CCD/2-Eco
The machine is especially interesting for beginners with a low budget, because it has on the one...
CCD/2/MTC
The Bungard CCD/2 is a high quality Computer Controlled Drilling machine with semi-automatic tool...
CCD/2/ATC
The Bungard CCD/2/ATC is a high quality Computer Controlled Drilling machine with automatic tool...
CCD/MTC
The Bungard CCD/MTC is a high quality computer controlled drilling and milling machine with...
CCD/ATC
The Bungard CCD/ATC is a high quality Computer Controlled Drilling machine with Automatic Tool...
CCD/MTC/XL
The Bungard CCD/MTC is a high quality Computer Controlled Drilling and milling machine with...
CCD/ATC/XL
The Bungard CCD/ATC/XL is a high quality Computer Controlled Drilling machine with Automatic Tool...
CCD accessories
The CCD is extensible through a variety of options....
CCD/2/ATC Precision
The Bungard CCD/2/ATC Precision is a high quality Computer Controlled Drilling machine with...
