Made in Germany

Favorit | Bungard Elektronik - through-hole-plating

Through-hole plating

Favorit

Hand-operated machine, especially for mechanical through-hole-plating purposes. Professional through-hole-platings by individual tools for each rivet diameter. Optimal contacts, even without soldering. Favorit offers high quality results at a low cost level.

Easy-handling and high-quality lever press also for jewellery and light punching applications, Made in Germany

dimension (LxBxH):  95 x 300 x 210 mm



throat: 200 mm



weight: ca. 4 kg

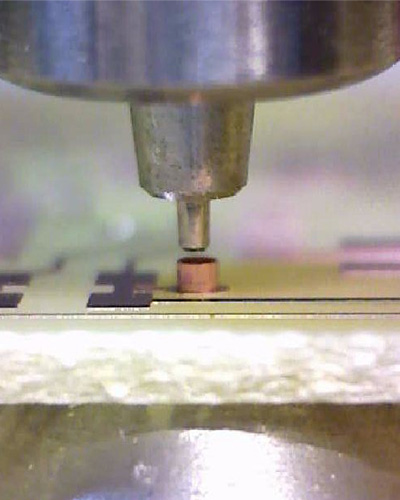

Through-hole plating Bungard Favorit - inserted rivet before press cycle

inserted rivet before press cycle

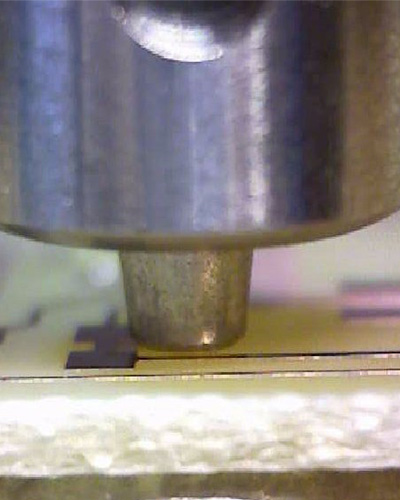

Through-hole plating Bungard Favorit - rivet being pressed

rivet being pressed

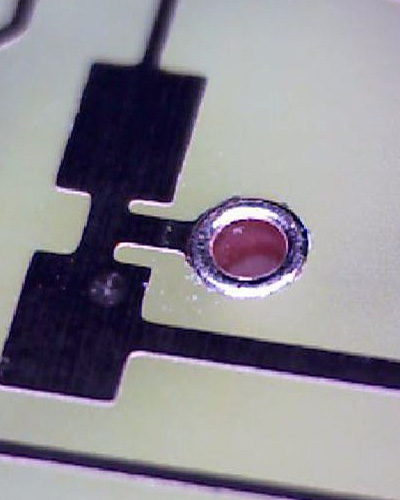

Through-hole plating Bungard Favorit - result: plating through hole after press cycle

result: plating through hole after press cycle

Easy-handling and high-quality lever press also for jewellery and light punching applications, Made in Germany

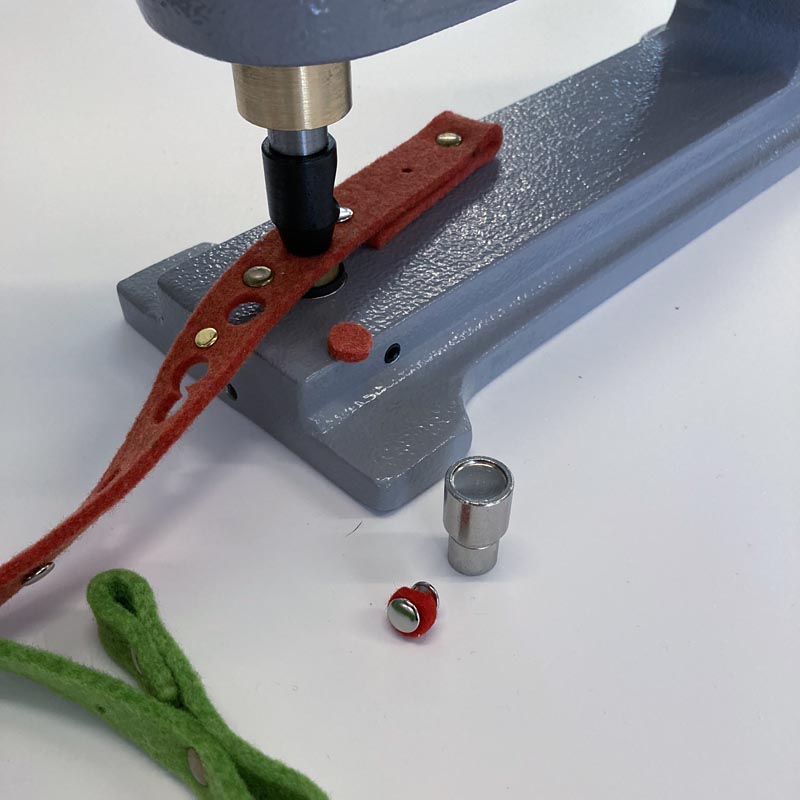

Through-hole plating Bungard Favorit - press also for jewellery

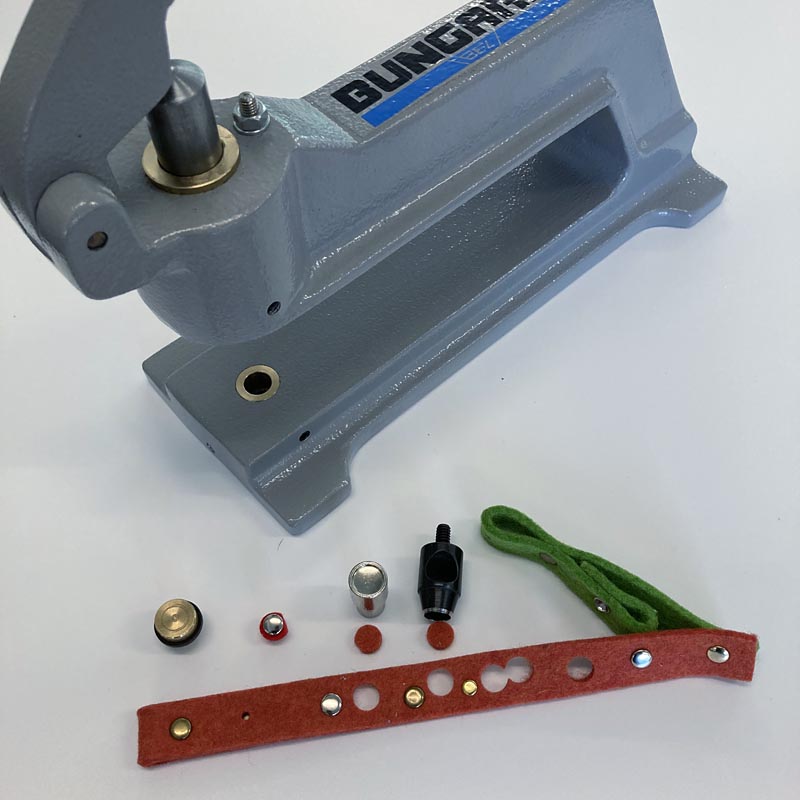

Through-hole plating Bungard Favorit - press also for jewellery

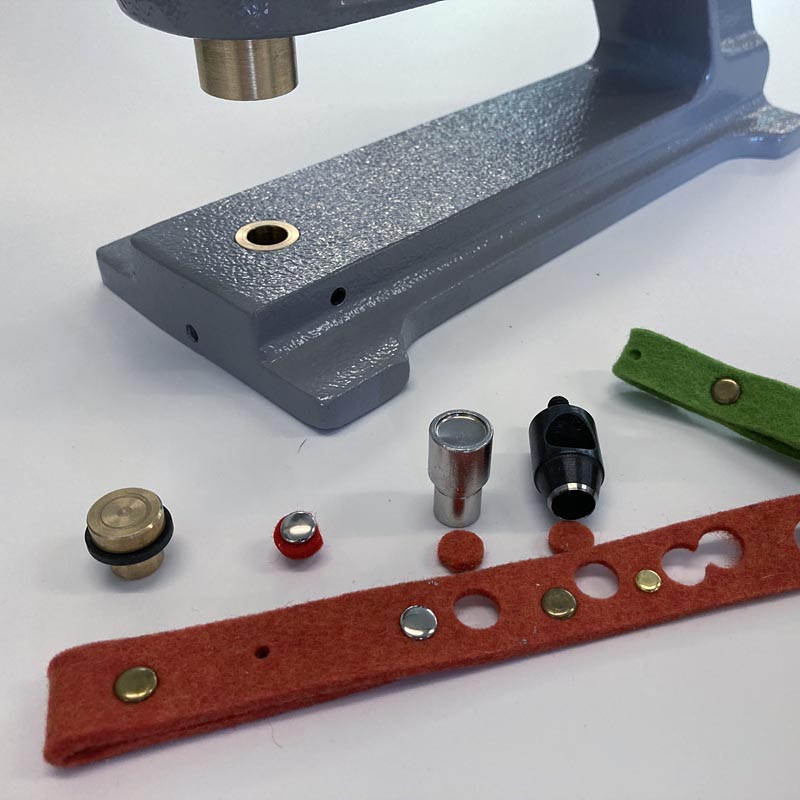

Through-hole plating Bungard Favorit - press for light punching applications

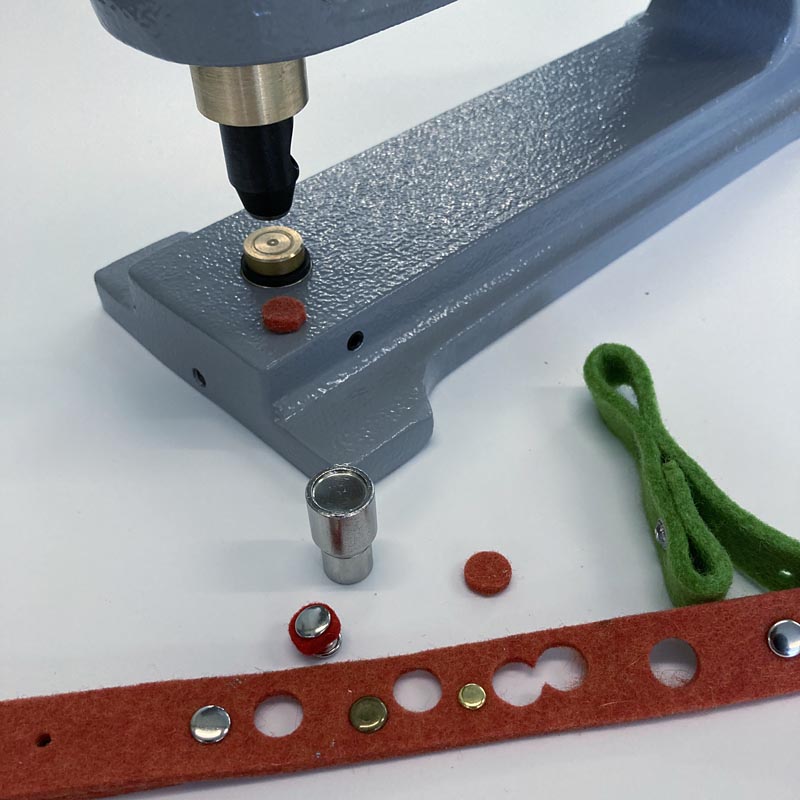

Through-hole plating Bungard Favorit - press also for jewellery

New: to arrange and fix multilayer pcbs before pressing we offer special brass tubular rivets with outer diameter 3.0

Special features

  • Adjustable depth limiter
  • Maximum board size: 400 mm

Extend of delivery

  • The offered system includes complete press + tools
  • Inclusive 1 x 1000 rivets
  • Inclusive 1 set of tools
  • Various tools and rivets are available
  • Please specify the inner diameter you require
  • Different tools have to be used for different diameters

Options

  • Various tools and rivets are available.
  • Different tools have to be used for different diameters.

Rivet inner diameter/mm: 0.4, 0.6, 0.8, 1.0, 1.2, 1.5
Required drill diameter/mm: 0.6, 0.8, 1.0, 1.5, 1.7, 2.0

Techn. Data

Dimensions(B x H x T): ca. 9,5 x 21 x 30 cm

Throat: 200 mm

Weight: ca. 4 kg

Rivet diameter in mm: 0,4 / 0,6 / 0,8 / 1,0 / 1,2 / 1,5

Drill diameter in mm: 0,6 / 0,8 / 1,0 / 1,5 / 1,7 / 2,0

Special features
  • Adjustable depth limiter
  • Maximum board size: 400 mm
Extend of delivery
  • The offered system includes complete press + tools
  • Inclusive 1 x 1000 rivets
  • Inclusive 1 set of tools
  • Various tools and rivets are available
  • Please specify the inner diameter you require
  • Different tools have to be used for different diameters
Options
  • Various tools and rivets are available.
  • Different tools have to be used for different diameters.

Rivet inner diameter/mm: 0.4, 0.6, 0.8, 1.0, 1.2, 1.5
Required drill diameter/mm: 0.6, 0.8, 1.0, 1.5, 1.7, 2.0

Technische Daten

Abmessungen (B x H x T): ca. 9,5 x 21 x 30 cm

Ausladung: 200 mm

Gewicht: ca. 4 kg

Nietdurchmesser in mm: 0,4 / 0,6 / 0,8 / 1,0 / 1,2 / 1,5

Bohrdurchmesser in mm: 0,6 / 0,8 / 1,0 / 1,5 / 1,7 / 2,0

Through-hole plating

All specifications are subject to change without notice.
