FILMSTAR PLUS | Bungard Elektronik - Photoplotter



Filmstar-Plus is the name of the next generation of our bitmap photoplotter series. Optimized for inhouse production of high end film layouts at reasonable price level the system can directly proceed (extended) Gerber files (RS 274X or RS 274C) or b/w bitmap (.bmp) files.

NFilmstar, your nicely designed partner in cost effective production of your required film artworks.

Dimensions (LxWxH):  700 x 350 x 200 mm


max. film size: 380 x 460 mm (XL)


max. plot format: 360 x 430 mm (XL)


Technical resolution: up to 16.256 x 25.400 dpi

New: Filmstar-Plus available in 3 different sizes:


max. film size: 250 x 380 mm

max. plot format: 230 x 360 mm


max. film size: 390 x 380 mm

max. plot format: 360 x 360 mm


max. film size: 380 x 460 mm

max. plot format: 360 x 430 mm

max. film size: 250 x 380 mm

max. plot format: 230 x 360 mm

max. film size: 390 x 380 mm

max. plot format: 360 x 360 mm


  • Die Werkzeuge sind auswechselbar und wahlweise für Nieten 0.4 bis 1.5 mm Innendurchmesser bei Plattenstärken bis 1.5 mm erhältlich. Für die unterschiedlichen Nietdurchmesser ist konstruktionsbedingt jeweils ein Werkzeugsatz erforderlich.
  • Passende Hohlnieten sind ab Lager in Verpackungseinheiten von 1000 Stück lieferbar

max. film size: 380 x 460 mm

max. plot format: 360 x 430 mm

FILMSTAR PLUS  - Photoplotter
Bungard Elektronik - Photoplotter

Techn. Data

Maximum plot size: see above

Maximum film format: see above

Speed: 7 mm of film width / min. at 2032 dpi

Light source: laser-diode 670 nm (red)

Data formats: Gerber, Extended Gerber, Hi-Res BMP

Extent of delivery: Photoplotter and Software on CD

System requirements:  Windows 7 - Windows 10

Dimensions: 710 x 340 x 200 mm (LxWxH)

Weight: approx. 25 kg

Power supply: External power supply Input 100V-240V / 47–63 Hz; Output 36V- DC

Technical resolution:

Resolution X: 1625, 2032, 3251, 4064, 6502, 8128,16256
Resolution Y: 25400dpi

Graphical resolution:

  1. Finest point/Finest line = 5 um (0.005 mm/0.19685 mil)
  2. Finest space between 2 lines = 10 um (0.01 mm/0.3937 mil)
  3. Finest space between 2 areas = 18 um (0.018 mm/0.70866 mil)
  4. Finest inverse spot dia (transparent point in black area) = 25 um (0.025 mm/0.98425 mil)


  • precise edge definition in photo quality
  • perfect blackness results in perfect opacity
  • extended software package included in delivery

Improvements compared to Filmstar FP 8000

  • higher resolution, up to 16 256 x 25 400 dpi
  • Stand alone unit - no separate PC necessary. Data can be transferred to the plotter either via USB stick or via USB cable

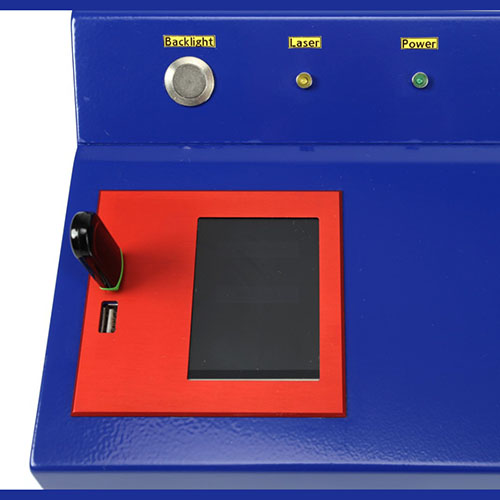

  • New electronics with Touch-Display and intuitive user interface
  • Software update: customized Windows optics, Windows routine for opening and saving of files. Higher resolutions in Gerber2bitmap, various calibration programs in Run_Photo_USB
  • 3 different plot speeds for either high precision or less time consumption

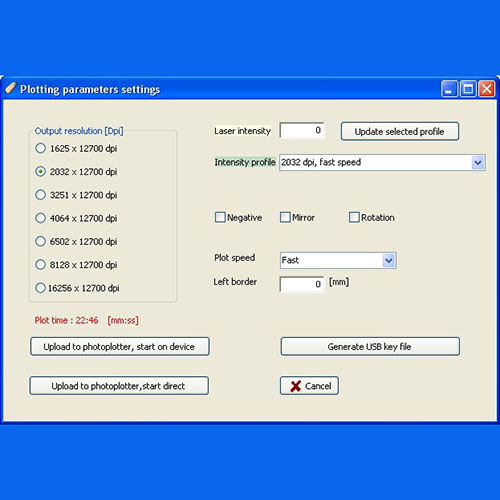

Bungard Elektronik - plot parameter
Bungard Elektronik - Photoplotter

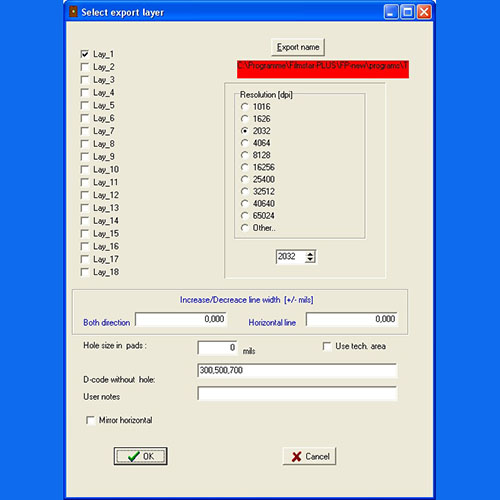

Bungard Elektronik - Photoplotter -  export parameters

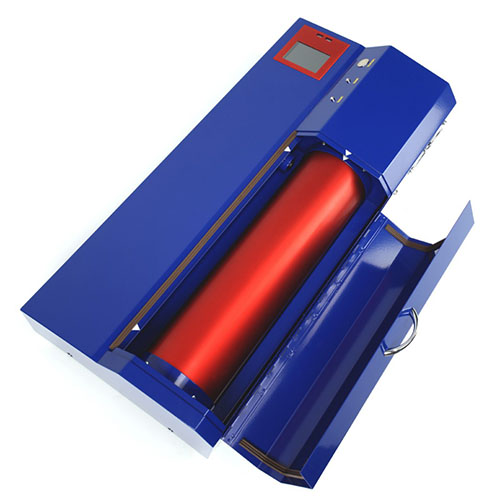

  • The film is fixed on a rotating drum. A highly focused red light laser diode is moving step-wise alongside that drum, driven by a precise stepper motor with worm and gear drive. Of course, all settings are software adjustable, calibrated and controlled.
  • Data are either transferred via USB cable from your computer to the plotter or you directly read them in from any USB stick. Software is part of delivery. It allows panelization of layout and drill data, rework of aperture tables and contains functions like negative plot, mirroring, preview and drill data export.
  • Interactive, absolute or relative positioning of the layouts on the film.
  • Preview and rework of various aperture tables of different layout systems.

Of course, we can supply you with all consumables and accessories you need for production of your layouts with our Filmstar plotter:

Amendment to Graphical resolution

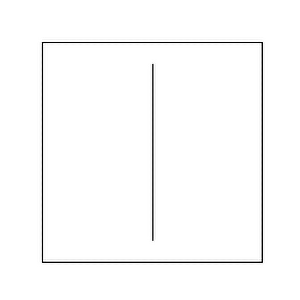

1) Finest point/ Finest line = 5 µm (0.005 mm/0.19685 mil).


Finest point/ Finest line - FILMSTAR PLUS

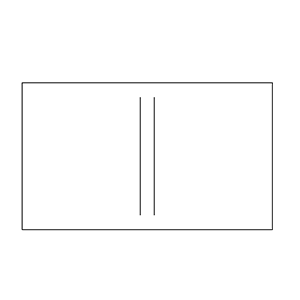

2) Finest space between 2 lines = 10 µm (0.01 mm/0.3937 mil)


Finest space between 2 lines - FILMSTAR PLUS

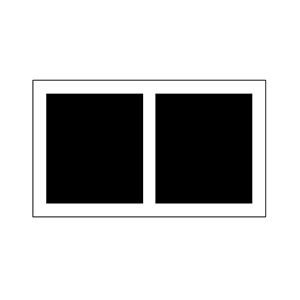

3) Finest space between 2 areas = 18 µm (0.018 mm/0.70866 mil)


Finest space between 2 areas  - FILMSTAR PLUS

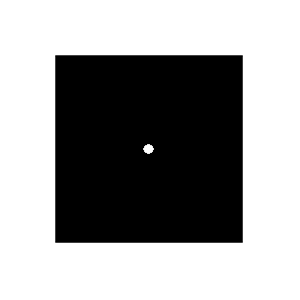

4) Finest inverse spot dia (transparent point in black area) = 25 µm (0.025 mm/0.98425 mil)


Finest inverse spot dia - FILMSTAR PLUS

Video Functions

Video Filmstar PLUS

Filmstar Photoplotter

All specifications are subject to change without notice.
