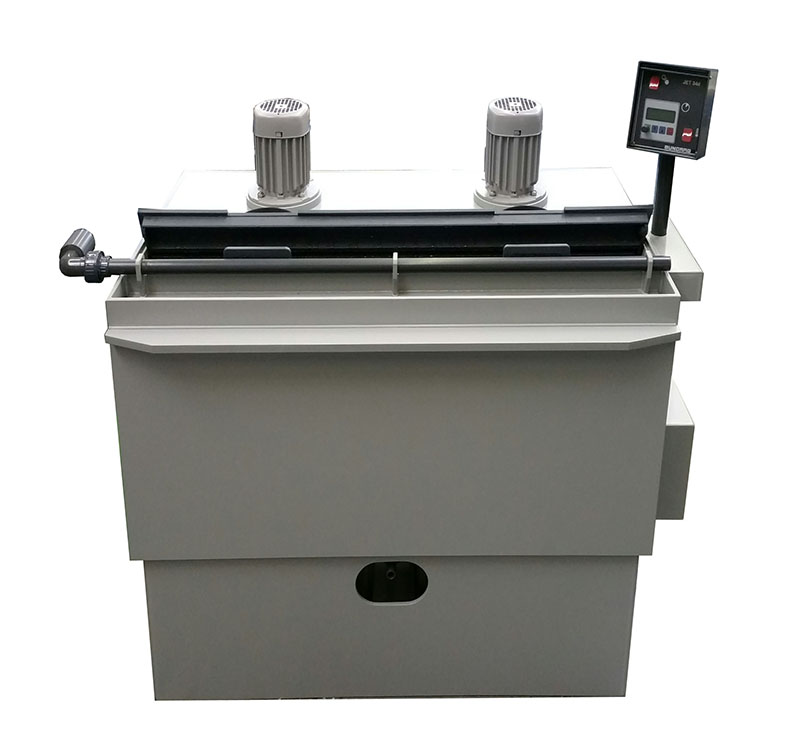

Bungard builds Twin-Jet with maximum etching format of 350 x 980 mm. This machine unites the proven Jet-components with an XXL etching format. In comparison to conveyorized etching machines the Bungard Twin-Jet convinces with a small space requirement, higher spray pressure and a fantastic price. What's more, on customer request the machine is also equipped with a fume extraction device at the opening lid.

Features

  • Maintenance free system with self-cleaning nozzles
  • High spray pressure by two 0,37 KW motors
  • Etching speed of 35µm Cu within 65 seconds (warm Fe-3-Cl)
  • Line resolution better than 0.1 mm
  • Strong 1000 W heater with thermostat and over-heat fuse
  • Big lid for easy loading, with built-in security switch
  • Maximum board size: 350 x 980 mm
  • Carrier for fixation of small PCBs with handle outside of machine
  • Easy and clean handling without etchant contact
  • Over flow wash tank in the front for rinsing etched boards
  • 3 cog valves (etching tank, rinse overflow, rinse inlet)
  • Digital timer (0-99 minutes) with count-down, auto reset and beeper
  • Sturdy construction fully made of PVC and titanium
  • Suitable for all common etchants
  • Also well suited for spray developing of dry film resist

Techn. Data

Dimensions (LxWxH): 700 x 1100 x 1300 mm

Working level: approx. 900 mm

Power supply: 220 V~, 50 Hz, ca. 2 kW

Tank capacity: approx. 50 l

Weight: approx. 90 kg

  • Maintenance free system with self-cleaning nozzles
  • High spray pressure by two 0,37 KW motors
  • Etching speed of 35µm Cu within 65 seconds (warm Fe-3-Cl)
  • Line resolution better than 0.1 mm
  • Strong 1000 W heater with thermostat and over-heat fuse
  • Big lid for easy loading, with built-in security switch
  • Maximum board size: 350 x 980 mm
  • Carrier for fixation of small PCBs with handle outside of machine
  • Easy and clean handling without etchant contact
  • Over flow wash tank in the front for rinsing etched boards
  • 3 cog valves (etching tank, rinse overflow, rinse inlet)
  • Digital timer (0-99 minutes) with count-down, auto reset and beeper
  • Sturdy construction fully made of PVC and titanium
  • Suitable for all common etchants
  • Also well suited for spray developing of dry film resist

Dimensions (LxWxH): 700 x 1100 x 1300 mm

Working level: approx. 900 mm

Power supply: 220 V~, 50 Hz, ca. 2 kW

Tank capacity: approx. 50 l

Weight: approx. 90 kg
