The resist coated circuit board is first provided with an electroplated nickel layer> 3μm as a diffusion barrier (preventing that the subsequent gold gradually "disappears" by diffusion). After the nickel plating followes by the actual galvanic golding. Gold layer between > 0.4μm to 2μm are deposited. This depends of the purpose. For plugs the number of jacking cycles is applied.
Ne-Cut was developed for cutting of PCBs (0-3 mm), Aluminium (0-2mm), steel (0-1 mm), plastics (0-5 mm) and even films and artworks.
QualityScan 3000 is a fully integrated, stand-alone process control, measurement and inspection workstation for use in many applications in multiple industries.
QualityScan 3000 uses a PC Windows based software package integrated with a highresolution, calibrated, A3 size fl atbed scanner.
This combination allows for inspection of parts at virtually any stage of production. Parts can be inspected versus Gerber data, CAD data or Golden parts.
Manipulator for the production of prototypes and small series. The patent-registered Pick & Place head enables the comfortable handling of SMD-components. The modular-built system can be confi gurated for every use. It realizes the complete process - starting by dispensing of solder paste or glue up to assembling different components.

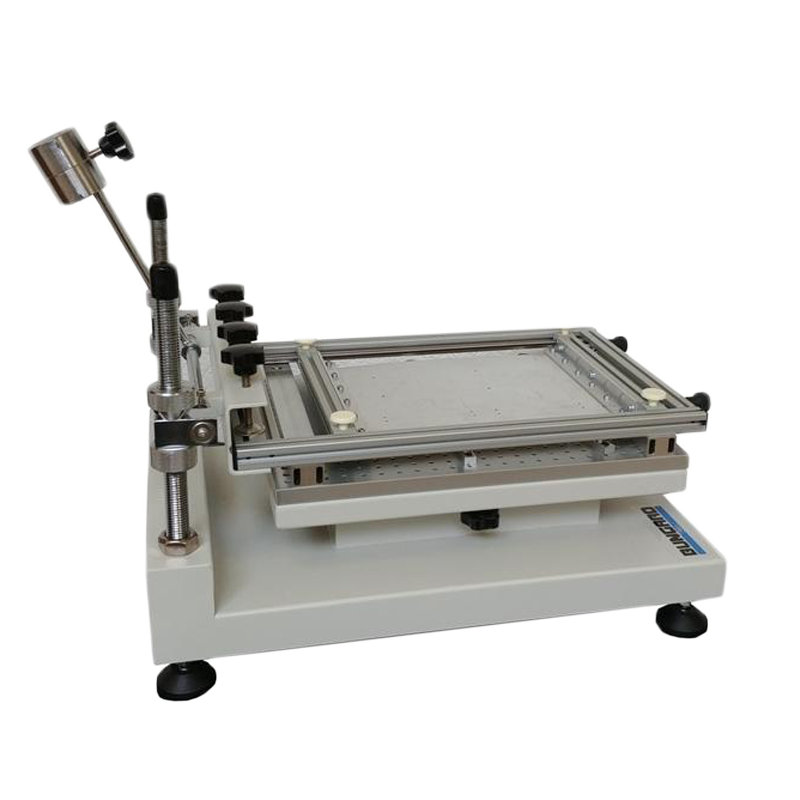

The StenPrint3000 is a manual printing system with a stable base for a high print quality. The solid construction provides clean and reproducible pressure with simple handling, even with small components and fi ne structures down to 0.5 mm.
Manipulator for the production of prototypes and small series. The patented Pick & Place head enables easy handling of SMD components. The modular system can be configured for any application. The system realizes the entire process from applying the solder paste or glue to assembling the various components.
The HA06 is a solder oven for SMD component with the use of lead free paste.
